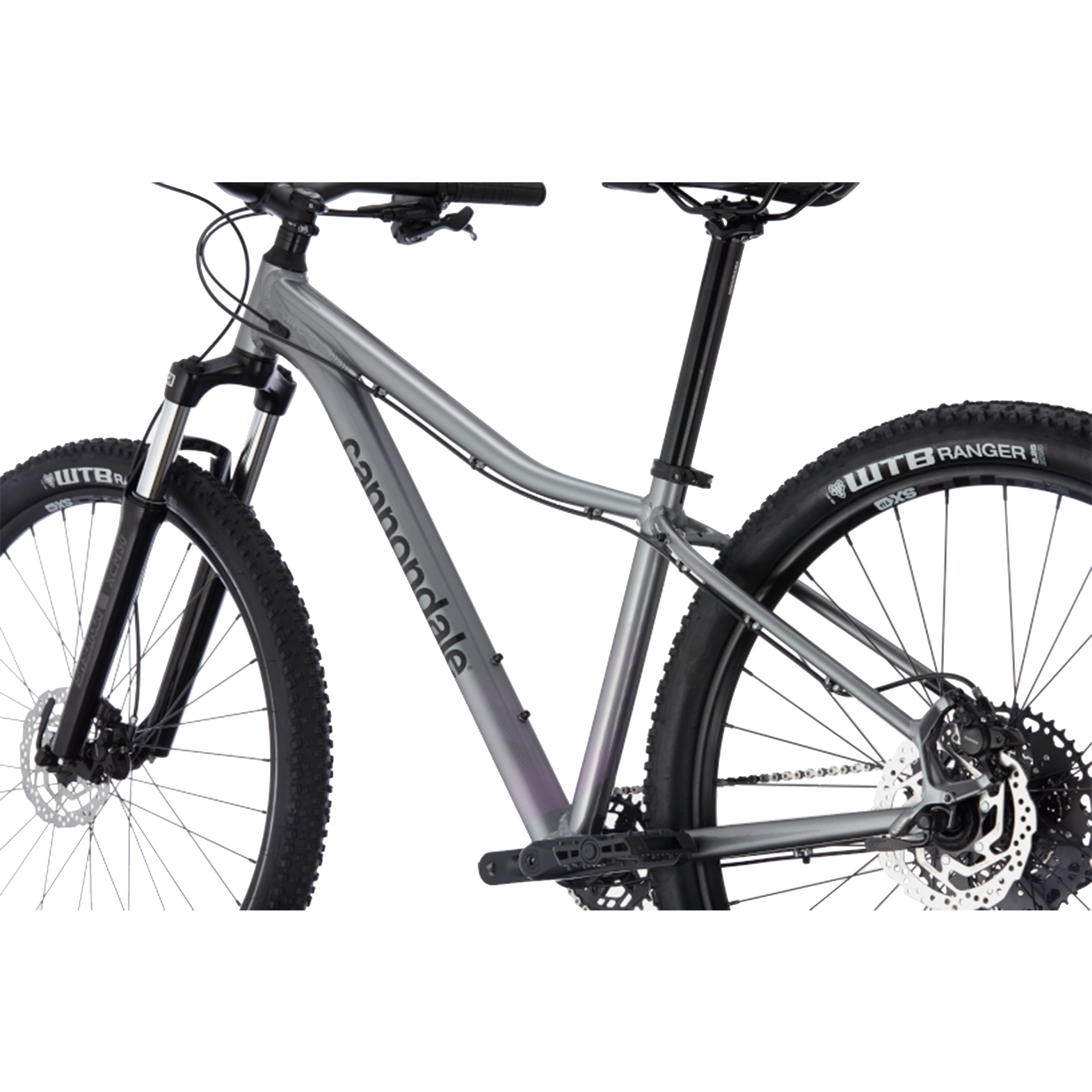

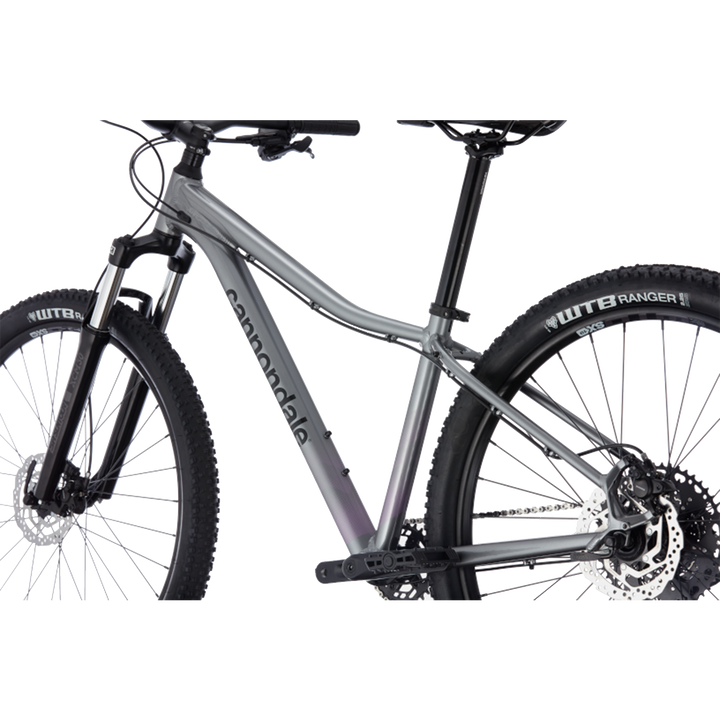

Frame: SmartForm C3 Alloy, SAVE, 1-1/8” headtube,
post mount disc, StraightShot internal cable
routing, dropper post compatible, BSA-73
Fork: SR Suntour XCM, 100mm, coil, 42mm
offset (27.5”) 46mm offset (29”)
Rims: WTB SX19, 32h
Hubs: (F) Shimano HB-TX505, QR /
(R) Shimano FH-TX505, QR
Spokes: Stainless Steel, 14g
Tires: WTB Ranger Comp, 29x2.25” (27.5x2.25”
- XS, SM), DNA Compound
Pedals: Cannondale Platform
Crank: Prowheel, Charm 30T
Bottom Bracket: Sealed bearing cartridge, square taper
Chain: KMC X10, 10-speed
Rear Cogs: microSHIFT, 11-48T, 10-speed

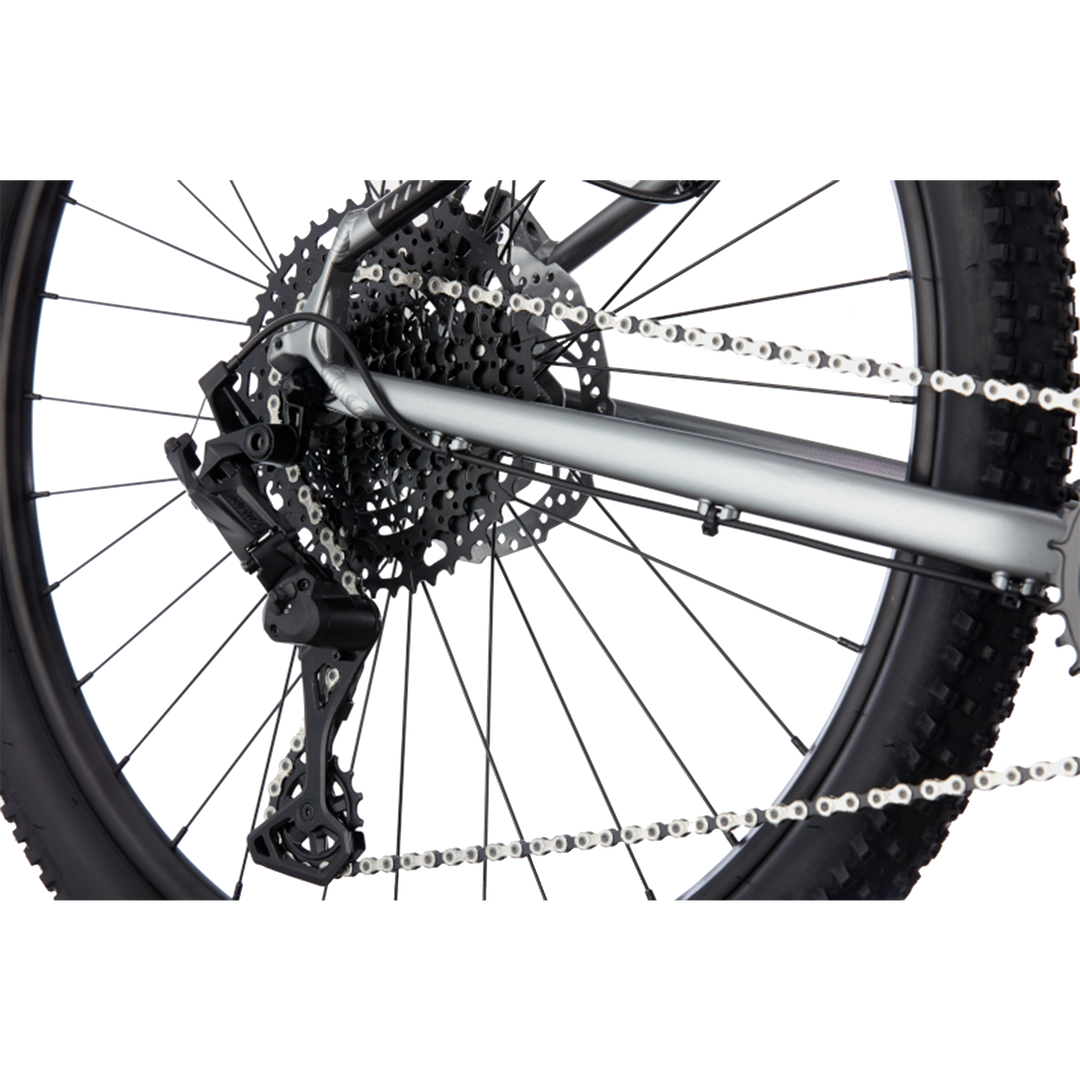

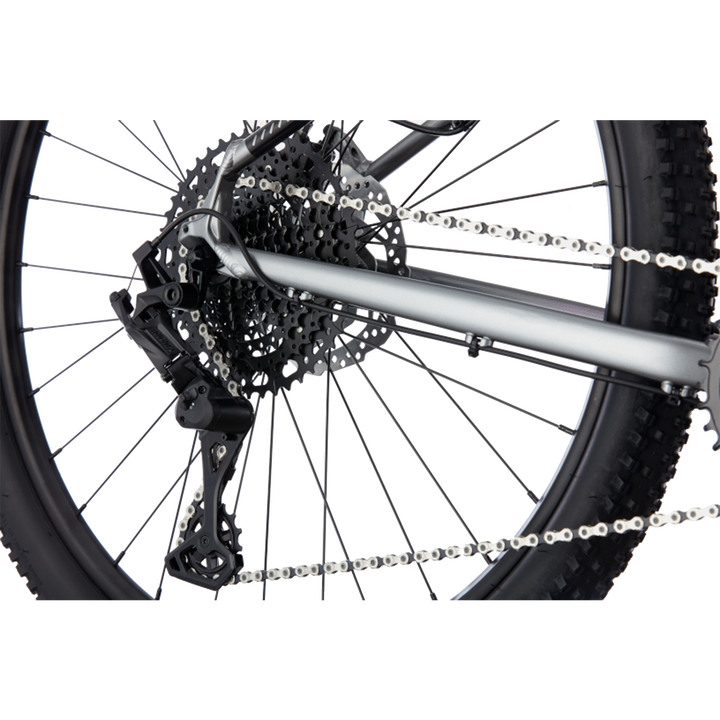

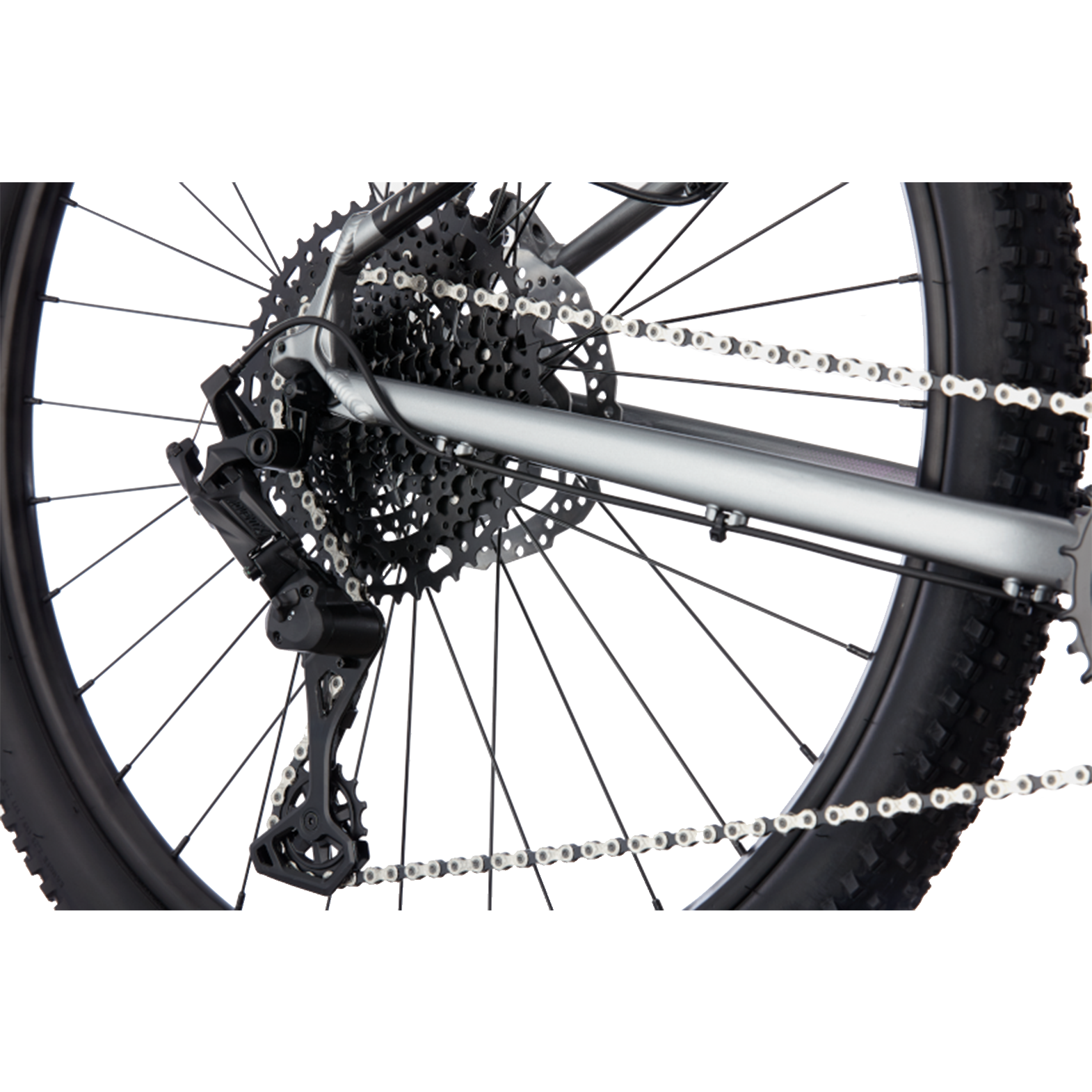

Rear Derailleur: microSHIFT Advent X
Shifters: microSHIFT Advent X, 10-Speed

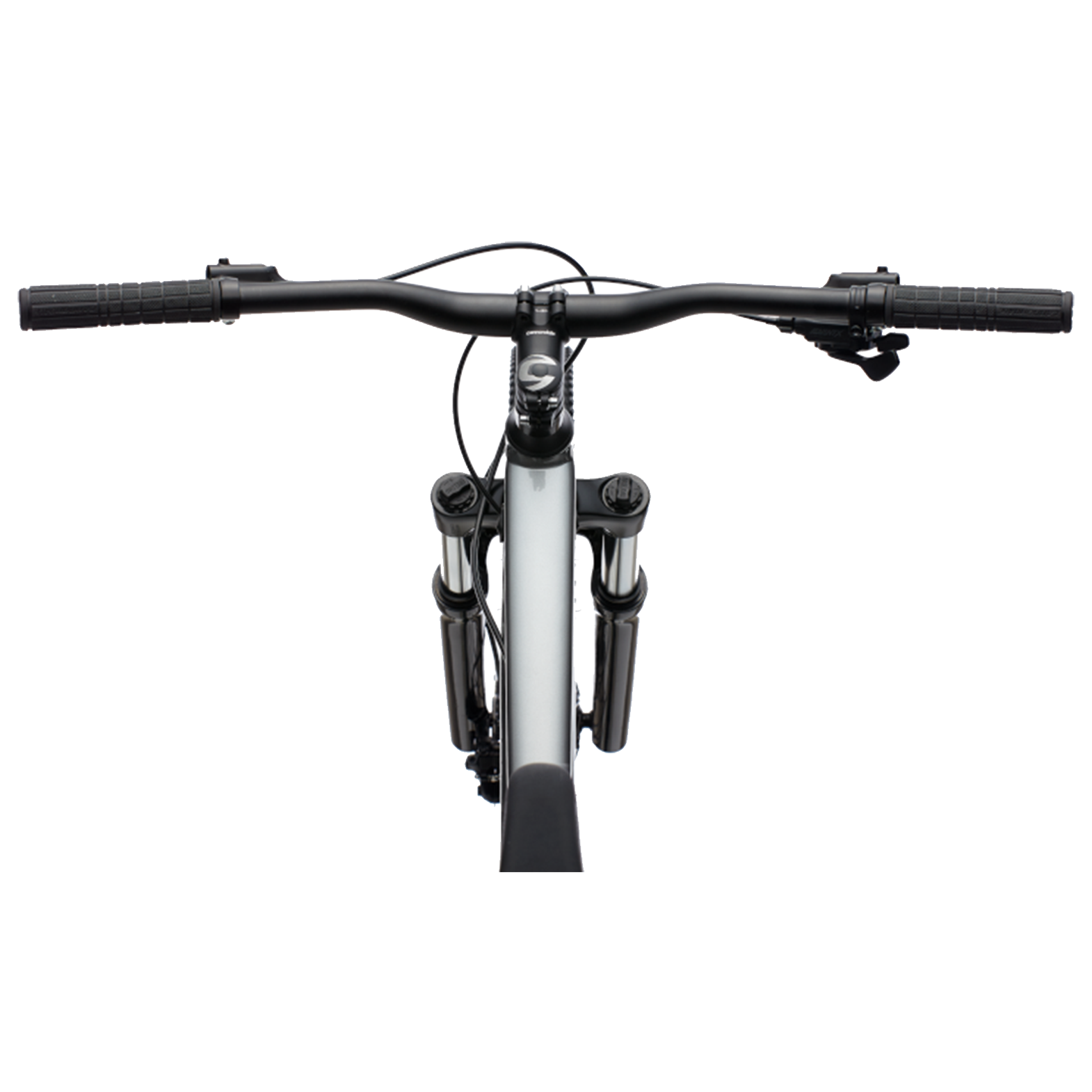

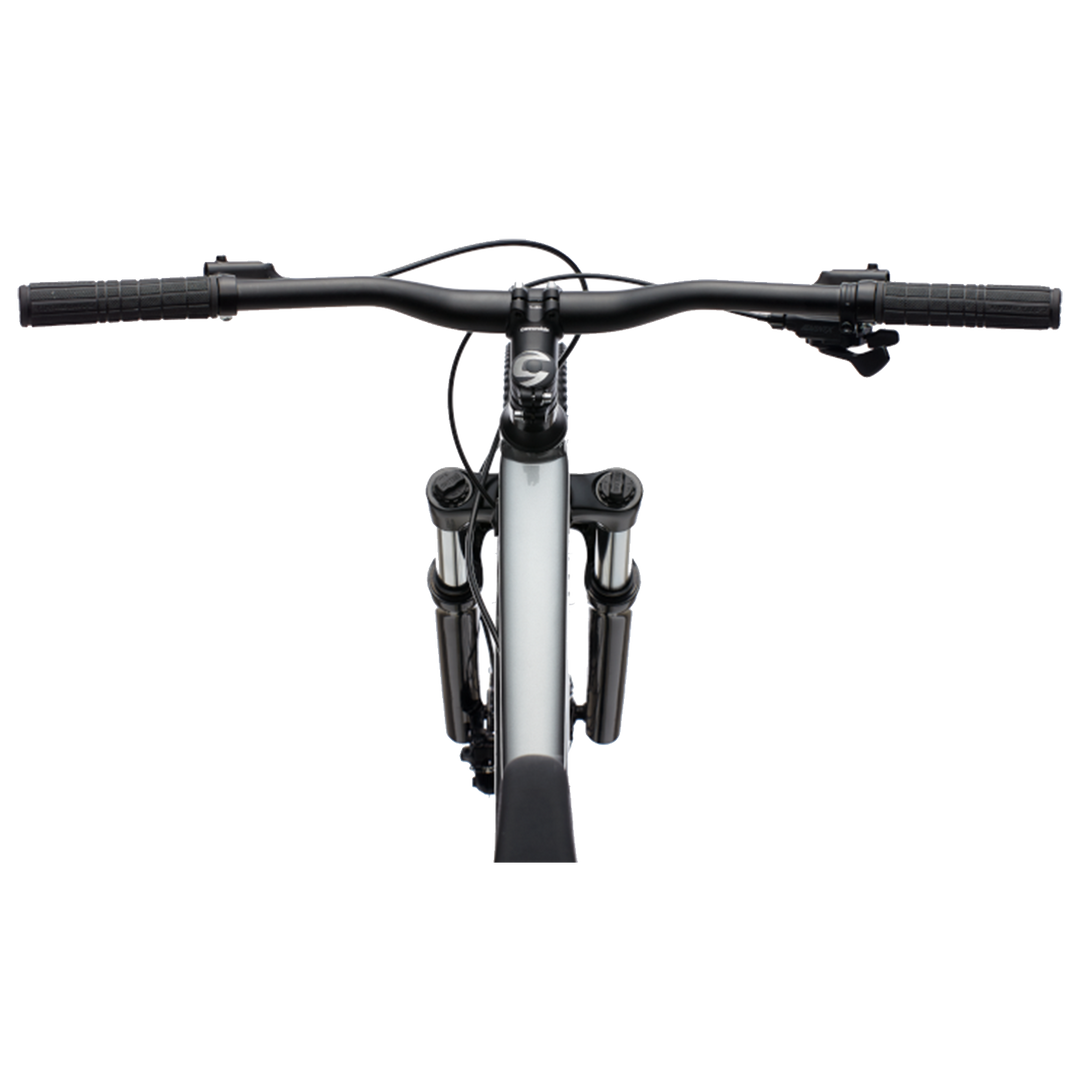

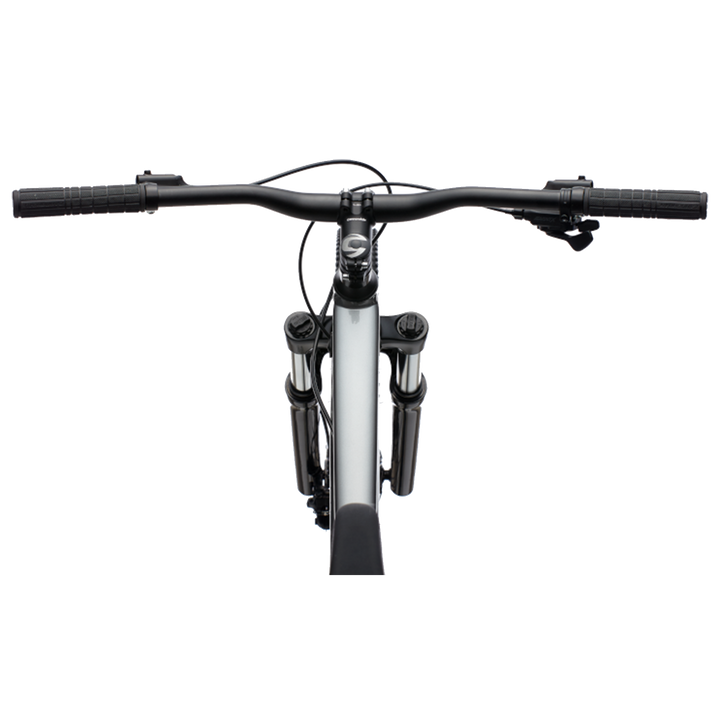

Handlebar: Cannondale Riser, 6061 Alloy, 25mm
rise, 8° sweep, 6° rise, 720mm
Grips: Cannondale Dual-Density
Stem: 6061 Alloy, 31.8, 7°
Headset: Semi-Integrated, 1-1/8”

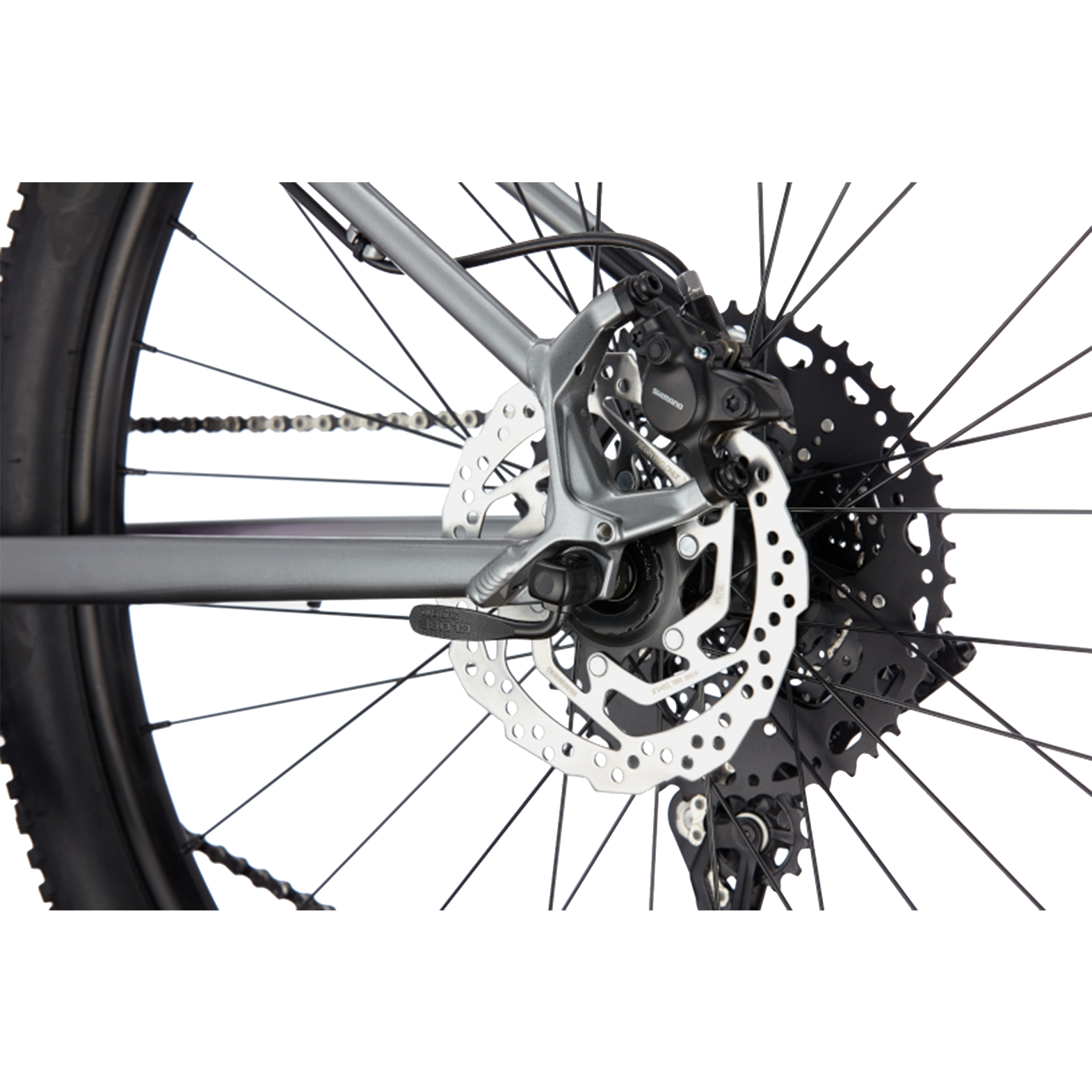

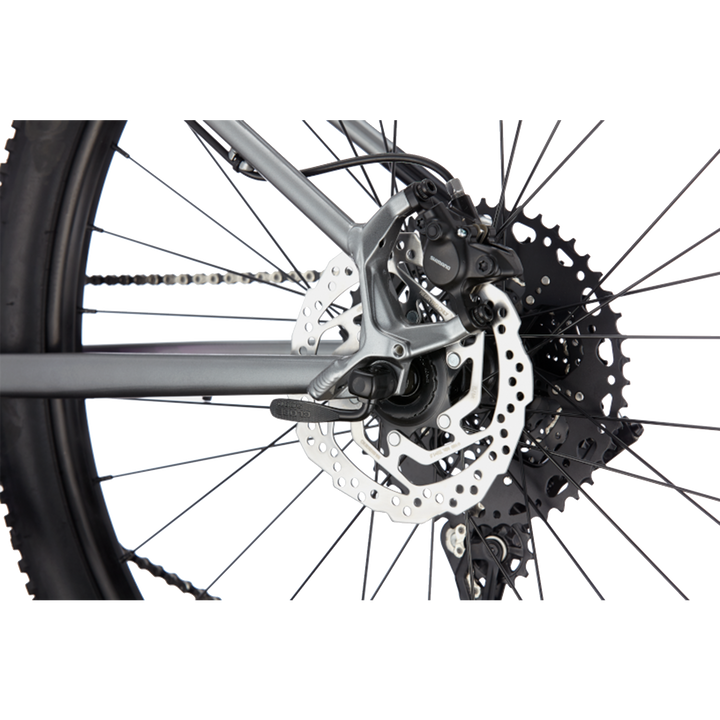

Brakes: Tektro M275 hydraulic disc, 160/160mm rotors
Brake Levers: Tektro hydraulic disc
Saddle: Cannondale Stage 3
Seatpost: Cannondale 3, 6061 Alloy, 31.6 x 350mm
(XS - SM), 400mm (MD-XL)
